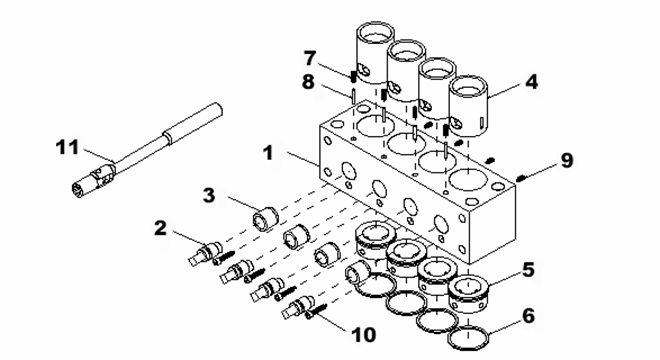

5C MULTI BLOCK PARTS LIST
4 STATION, 6 STATION, 8 STATION
 |
| |
| ITEM |
QTY |
PART NUMBER |
PART NAME |
| 1 |
1 |
640404-000111 |
MAIN BODY |
| 2 |
4 |
640404-000112 |
3/8” SQUARE CAM |
| 3 |
4 |
640404-000113 |
BUSHING |
| 4 |
4 |
640404-000114 |
5C COLLET SLEEVE |
| 5 |
4 |
640404-000115 |
COLLET NUT WITH 029 O-RING |
| 6 |
4 |
640404-000132 |
SNAP RING |
| 7 |
4 |
640404-000118 |
10-32 X 1/2” SOCKET SET SCREW |
| 8 |
4 |
640404-000119 |
1/8 X 1” DOWEL PIN |
| 9 |
4 |
640404-000120 |
10-32 X 1/2” SOCKET SET SCREW MODIFIED |
| 10 |
4 |
640404-000121 |
10-32 X 1” SOCKET CAP SCREW MODIFIED |
| 11 |
1 |
640404-000122 |
CAM WRENCH |
|
